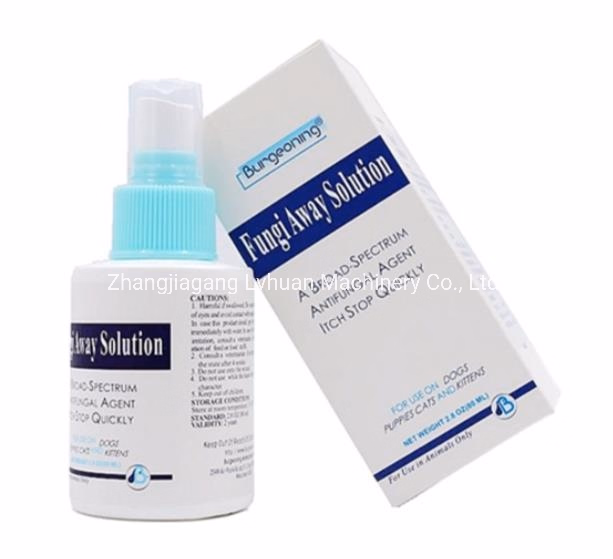

Spray medical plastic bottle IB80 Medical
Product characteristics
1). It produces more finished bottles per cycle per hour without deflashing and trimming.
2). It has been designed to make plastic bottle containers with exacting weight,size,volume tolerance and quality.
3). The weight of the product can be pre-set. Excellent mechanical strength, impact -resisting and non-cracking.
4). There is no joint seam at the bottom, and the bottle strength is improved accordingly.
5). The joint seam on the bottle body is smooth.
We provide full-automatic injection blow molding machine, injection stretch blow molding machine, and extrusion blow molding machine to meet your comprehensive solutions in the field of plastic container packaging. Our excellent design ability, for your special bottle shape design, multi-purpose plastic container design to provide thoughtful service.
Product introduction
More than a mold cavity, fast The molding.No burrs and waste,Fully automatic production line.
Precision of the threaded neck collar,Excellent machine performance,Tight suture,The qualification
rate of close to perfect.Pharmaceutical packaging food packaging containers The best partner!
| Brand:LVHUAN | Model:IB85 | Material:Stainless steel | Place of Origin:Zhangjiagang |
| Name:Injection blow molding machines |
Product parameters
| No. | Item | Data | No. | ltem | Data |
| 1 | Dia. Of Screw | 52mm | 13 | Main motor power | 30kw |
| 2 | Screw L/D | 22 | 14 | Pressure of hydraulic system | 16.0mpa |
| 3 | Max. theoretical capacity | 360Cm3 | 15 | Wastage of compressed air | >0.8 M3/min |
| 4 | Heating power of cylinder | 12.0kw | 16 | Working Pressure of compressed air | 1 Mpa |
| 5 | clamping force 0f injection mould | 850kn | 17 | Wastage of cooling water | 5 M3/h |
| 6 | Clamping force 0f blow | 90kn | 18 | The scope of formability product | 0.005-0.8 L |
| 7 | Opening stroke of mould | 140mm | 19 | High of formability product | ≤200 mm |
| 8 | ejector stroke | 200mm | 20 | Dia. of formability product | ≤100 mm |
| 9 | Rotation table lifting height | 70mm | 21 | Idle time | 5s |
| 10 | Max Mould size L *W | 740x390 | 22 | Outline size L* W* H | 4100×1450×2350 |
| 11 | Min. mould thickness | 280mm | 23 | Machine weigh | 8.5T |
| 12 | Mould heating power | 6kw |
About US
Over the past 20 years, LVHUAN has always been the benevolent choice of bottle making equipment for medical packaging. We have been making continuous efforts, from obscurity to familiarity; from single product injection blowing equipment to the whole series of injection blowing machines,injection stretch blow moulding machine, extrusion blow moulding machine etc.,we are working tirelessly for high-quality container packaging. Hope that on the way to the future, you can witness our efforts and walk hand in hand.
illustrate in detail
Operation platform
1. Fully automatic operation save time and effort
Electric cabinet
2. Excellent electrical system which guarantees the reliable operation of the equipment
High-Speed tie bar patent
3. Leading high speed rod structure Faster production cycle
The fuselage
4. Up to the standard of medical stainless steel exquisite cover design
5. Excellent injection molding system and temperature protection
